Saint Gobain Hardware Solutions

Delivers durable, high-performance glass hardware for modern façades, glazing, and architectural applications.

Precision Glass Hardware & Architectural Solutions for Modern Buildings

Saint-Gobain is a global leader in sustainable construction, delivering innovative building materials and high-performance solutions for architectural and industrial applications. Its glass hardware range includes functional and durable solutions for glass doors, façades and modern glazing systems, combining performance, reliability and contemporary design. With a strong global presence and commitment to innovation, Saint-Gobain supports evolving construction requirements. United Chemitech brings Saint-Gobain solutions closer to architects, façade consultants, contractors and construction professionals across India as an authorised distributor.

Key Advantages

Products We Supply

Precision engineered glass hardware solutions for Architectural application

Automatic Sliding Door Solutions

Smart Access. Seamless Movement. Modern Entrances.

Automatic Door Solutions provide a convenient and controlled approach to modern building entrances, combining automated sliding door systems with intelligent motion and safety sensors. Designed for commercial and architectural entrance applications, the range includes automatic sliding systems, motion detection, safety sensing and complementary access-control accessories.

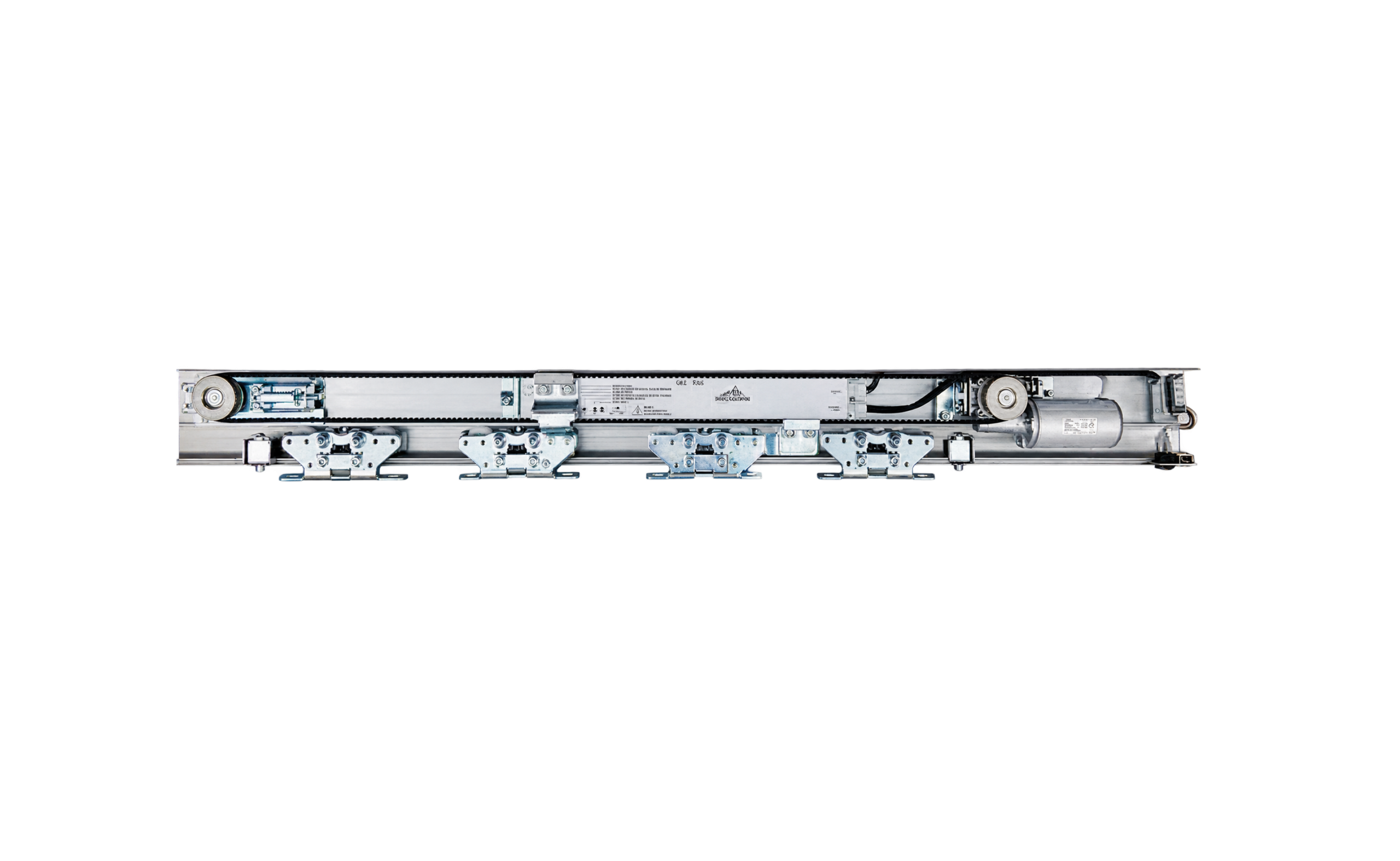

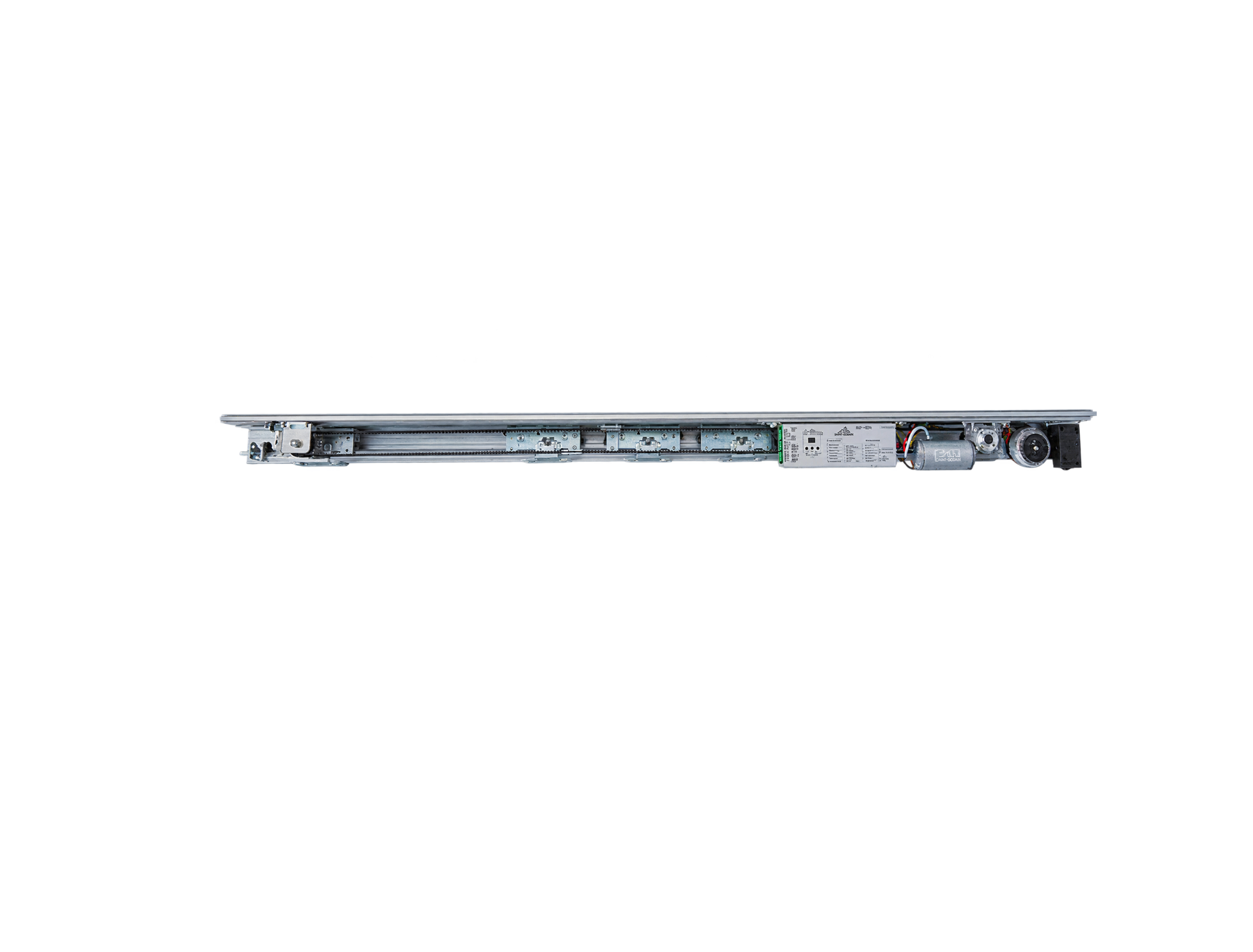

Access Pro

Access Pro is a heavy-duty automatic sliding door system from Saint-Gobain, featuring a powerful 100W BLDC motor, high load capacity, and smooth operation. Designed for durability and reliable performance in modern commercial and architectural spaces.

Access Lite

Access Lite is a Saint-Gobain automatic sliding door system featuring a BLDC motor, smooth operation, and modern aesthetics. Available in single- and double-leaf configurations, it offers flexible installation options for contemporary commercial and architectural spaces.

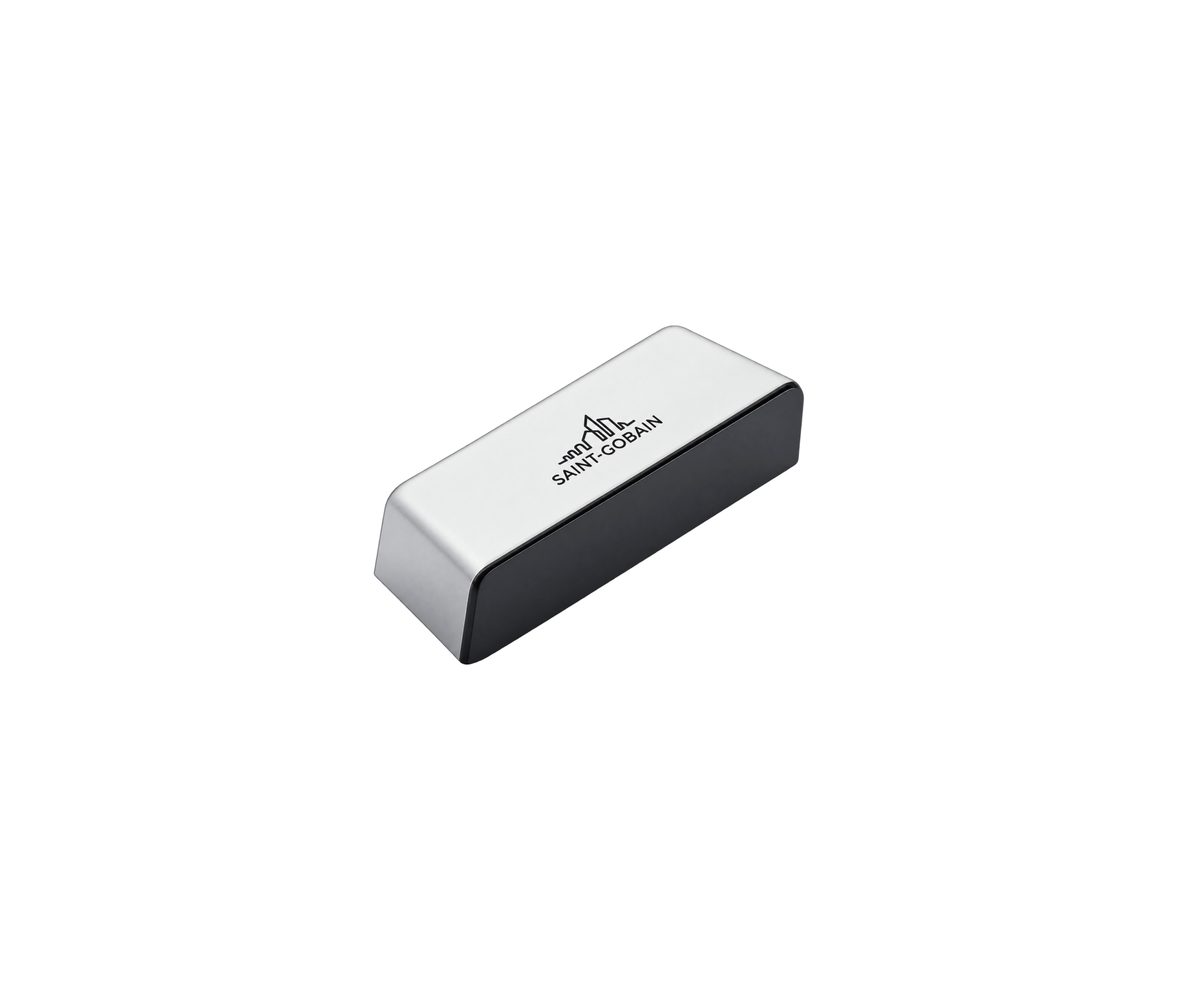

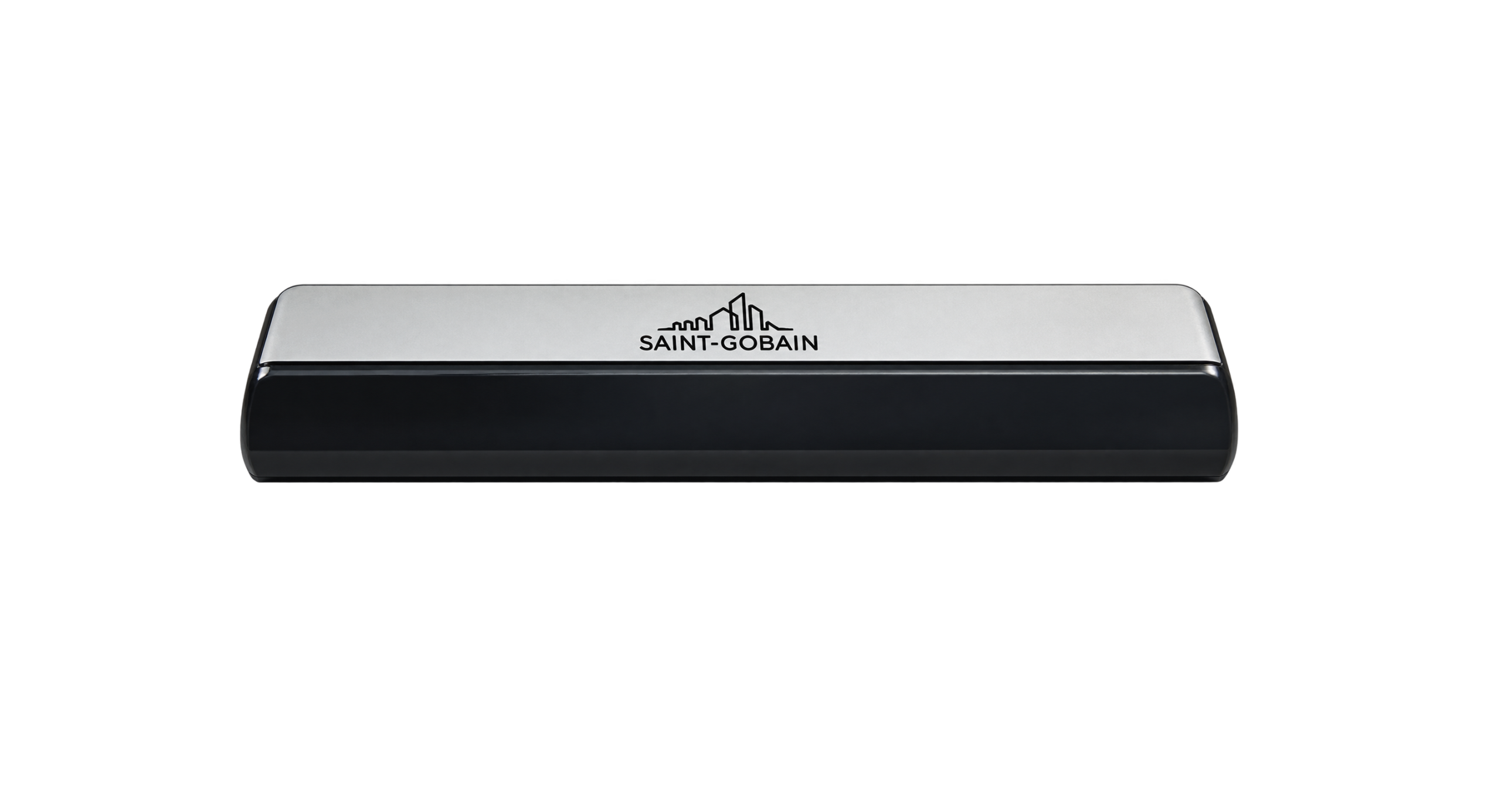

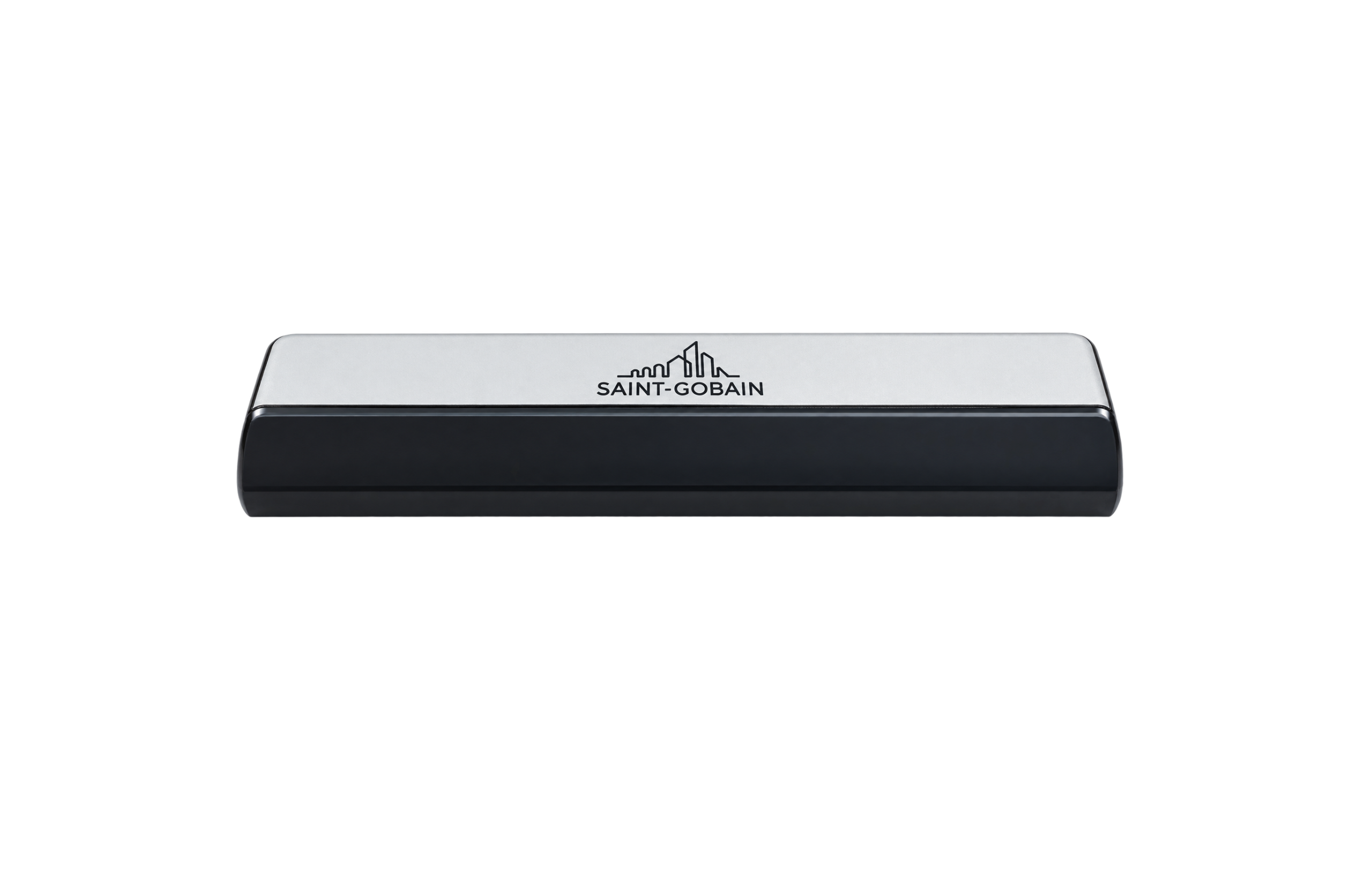

Ace Motion Sensor - SGF 951

Saint-Gobain SGF 951 ACE Motion Sensor is a microwave-based sensor designed for automatic sliding doors, delivering reliable motion detection and convenient hands-free access. Operating at 24.125 GHz, it offers a detection range of up to 4 m × 2 m, adjustable installation angles, and efficient performance for modern commercial and architectural entrances.

Ace Plus Motion Sensor - SGF 952

The Saint-Gobain SGF 952 ACE Plus Motion Sensor combines microwave and microprocessor technology for reliable motion detection in automatic sliding doors. Featuring IP54 protection, low power consumption, and a 3 m mounting height, it ensures convenient, hands-free access in modern commercial spaces.

Ace Plus Motion + Safety Sensor

Saint-Gobain SGF 953 ACE Plus Motion & Safety Sensor combines microwave and active infrared technology to provide reliable motion detection and enhanced safety for automatic sliding doors. Featuring IP54 protection, a 3 m mounting height, and efficient operation, it ensures convenient, hands-free access in modern commercial spaces. Saint-Gobain Glass

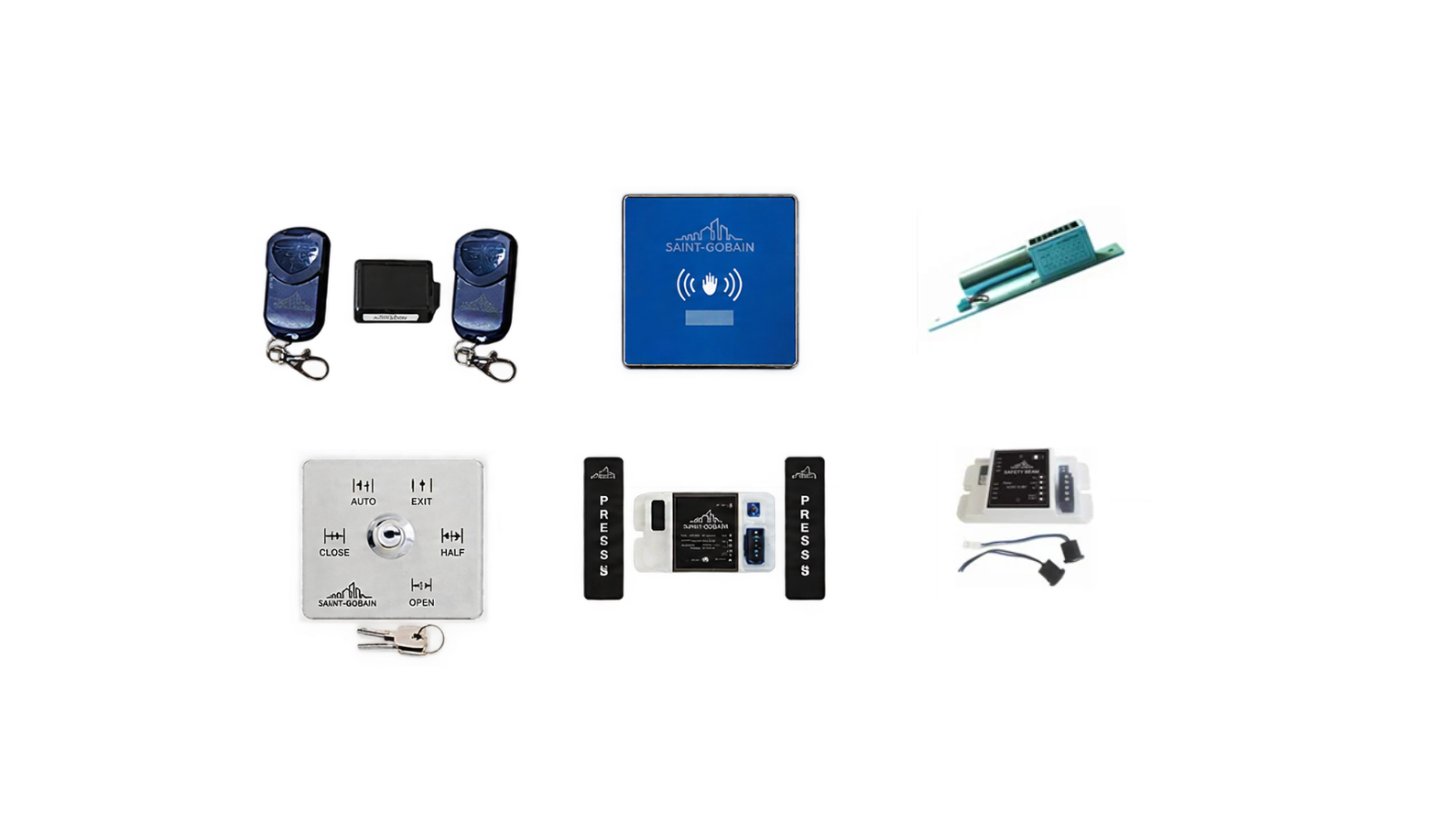

Accessories

Enhance the functionality, convenience, and safety of automatic sliding door systems with Saint-Gobain’s range of accessories. From remote control kits and program switches to hands-free sensors, wireless push buttons, electric locks, and safety beam sensors, these solutions ensure smooth operation, reliable access control, and improved user experience.

Glass Door Hardware Solutions

Complete Glass Door Solutions for Performance, Durability & Design

Comprehensive Saint-Gobain glass door hardware solutions, including floor springs, patch fittings, accessories, pull handles and lockable pull handles, designed to deliver reliable performance, durability and contemporary aesthetics across modern glass-door applications, with finishes available in Satin Stainless Steel, Polished Stainless Steel and Matt Black.

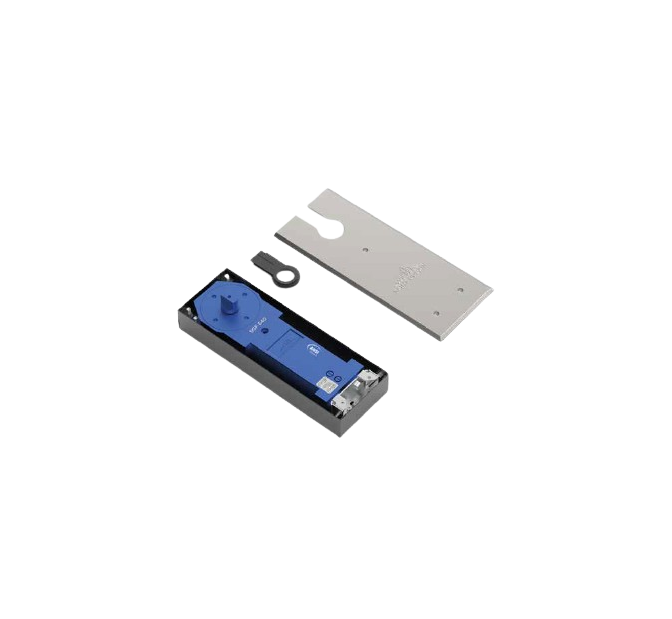

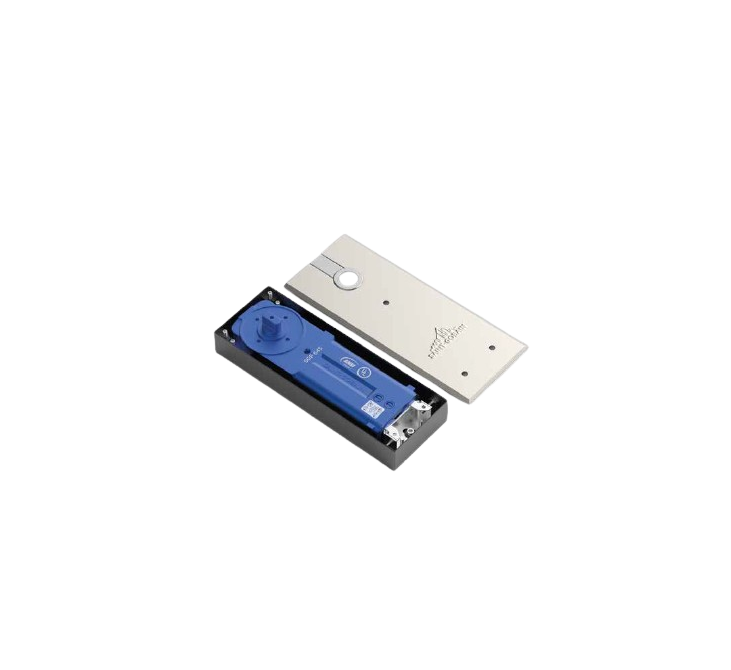

Floor Springs

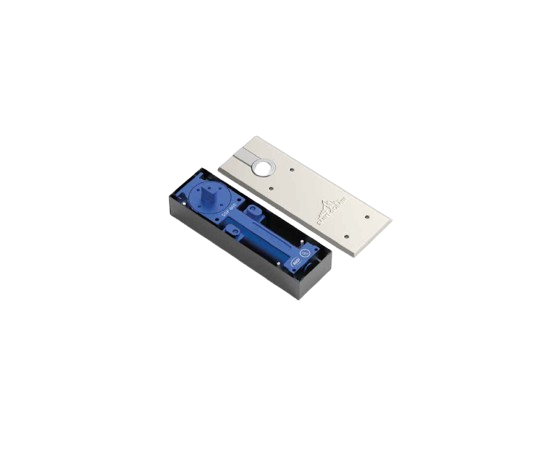

Screenshot_2026-10-06_113640-removebg-preview

SGF 665

SGF 665 is a heavy-duty floor spring for single- or double-action doors, supporting doors up to 150 kg and 1100 mm wide with a 180° opening angle. It features adjustable power, closing and latching speeds, ANSI A156.4 Grade 1 and UL listing, 2 million-cycle testing, and a 36-month warranty.

SGF 640

SGF 640 is a double-cylinder floor spring designed for standard single- or double-action doors, supporting doors up to 80 kg and 950 mm wide with a maximum opening angle of 130°. It features a cam-action mechanism, complies with ANSI A156.4 Grade 3, and is tested for 500,000 cycles with a 12-month warranty.

SGF 645

SGF 645 is a heavy-duty floor spring designed for single- or double-action doors, supporting doors up to 100 kg and 1000 mm wide with a maximum opening angle of 130°. It features a cam-action mechanism, adjustable closing and latching speeds, complies with ANSI A156.4 Grade 1, and is tested for 2 million cycles with a 36-month warranty.

Patch Fittings

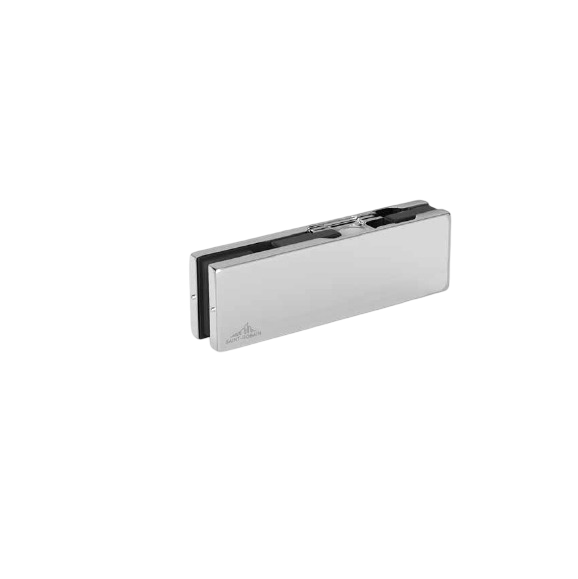

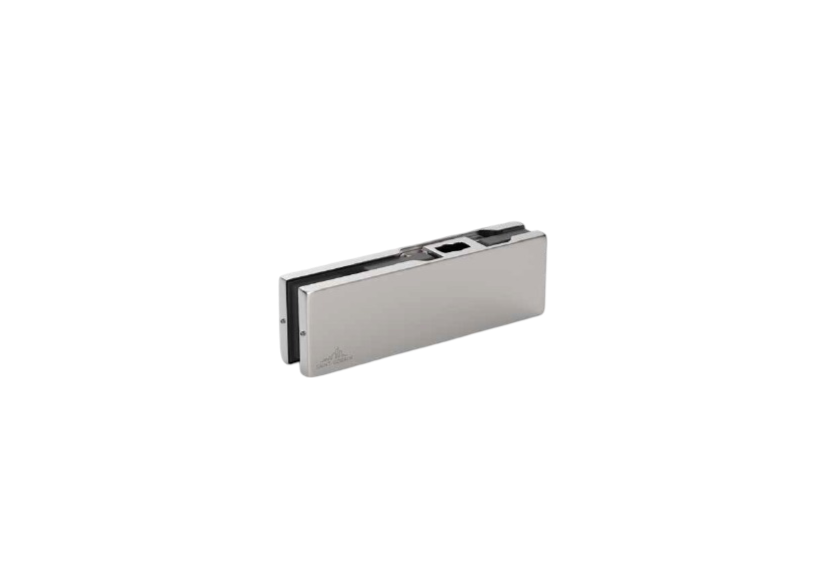

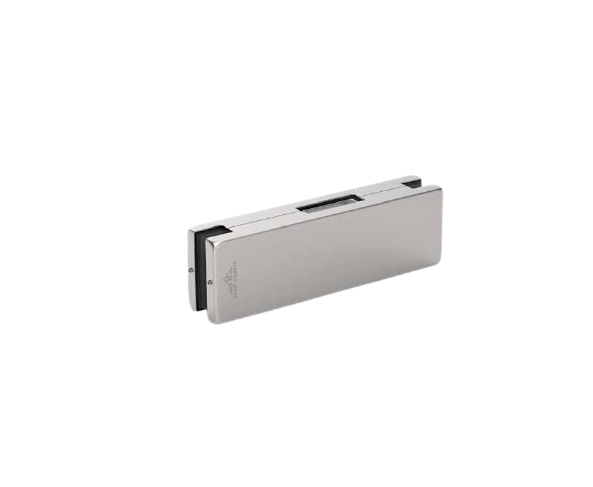

SGF 201 – Bottom Patch

Bottom connection fitting designed for glass doors and floor-spring applications.

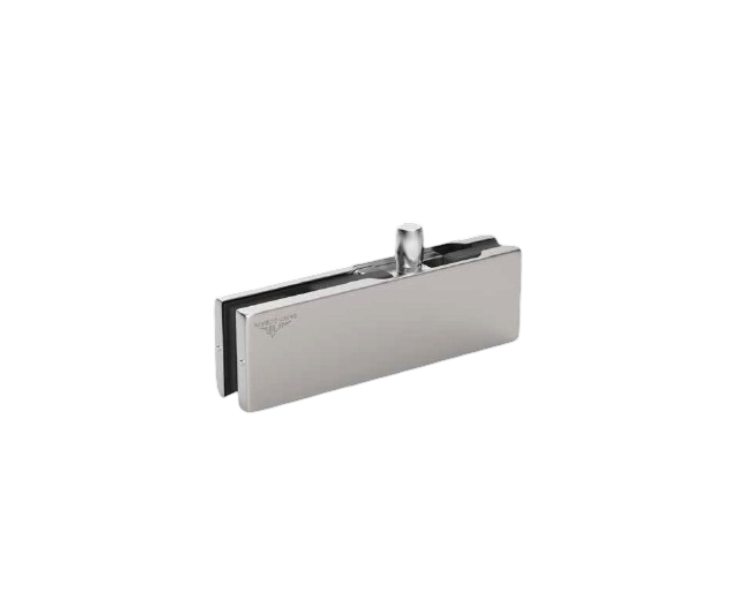

SGF 202 – Top Patch

Top connection fitting for securing and supporting glass doors.

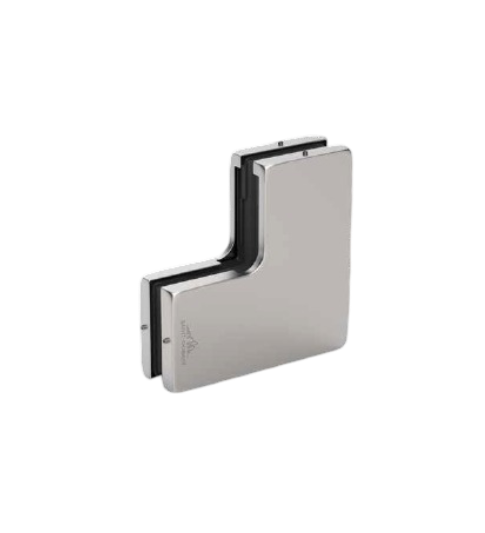

SGF 203 – Over Panel Patch

Designed to connect the glass door with an over-panel configuration.

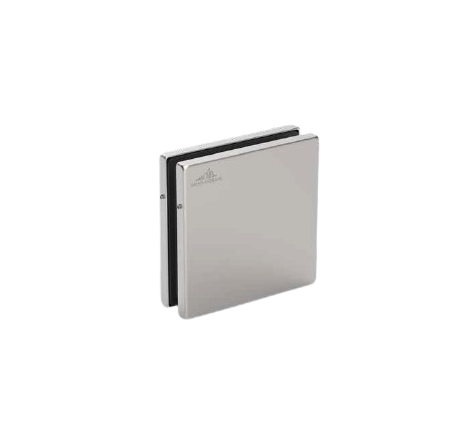

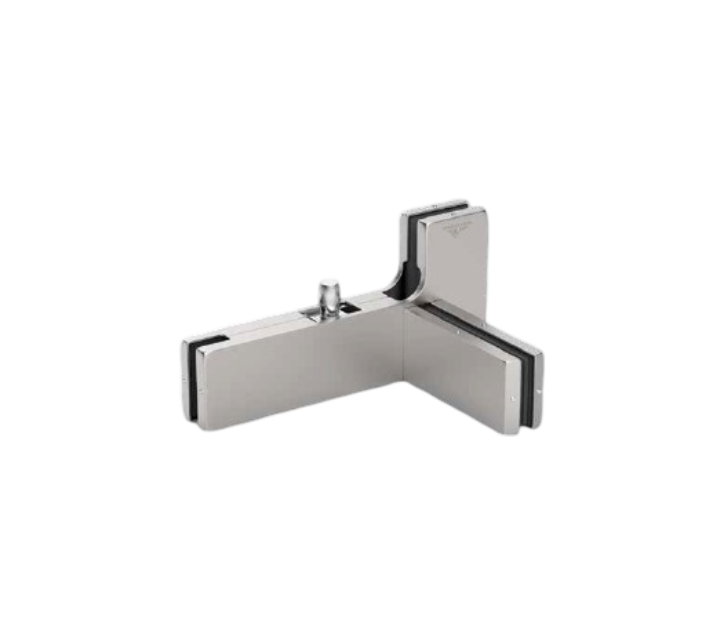

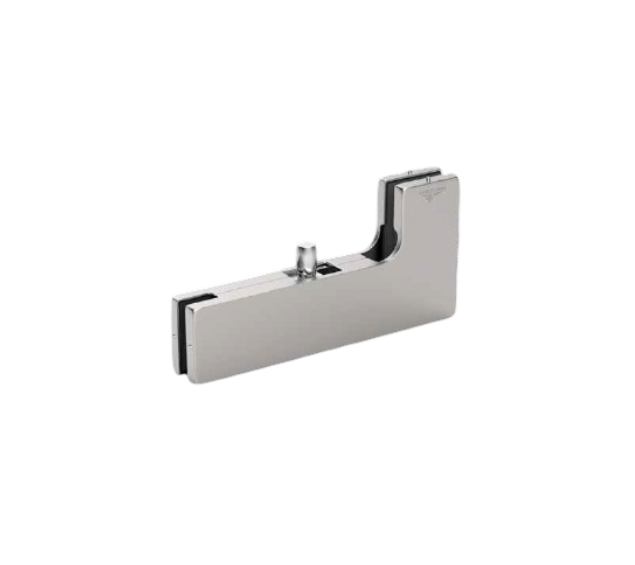

SGF 204 – Over & Side Panel Patch

Provides connection between the door and both over and side glass panels.

SGF 205 – Over & Side Panel Patch with Fin

Patch fitting with fin for over-and-side panel glass-door configurations, available in LH and RH versions.

SGF 206 – Over & Side Connector

Connector designed for joining over and side glass panels.

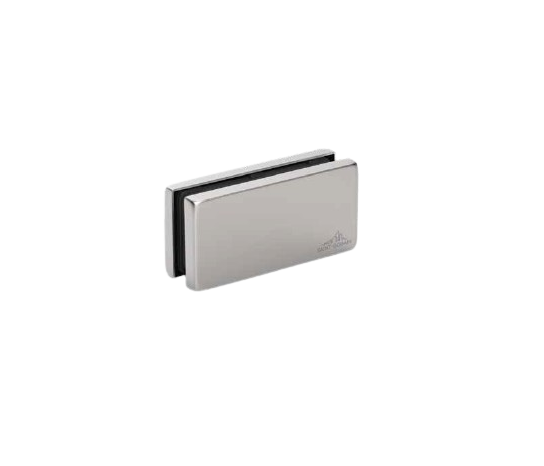

SGF 207 - Side Connector

Provides a secure connection between side glass panels.

SGF 208 - Corner Connector

Designed for connecting glass panels at corner configurations.

SGF 210 - Quadruple Connector

Used for multi-panel glass configurations requiring four-way connection.

SGF 211 - Corner Lock

Locking solution designed for suitable corner glass-door configurations.

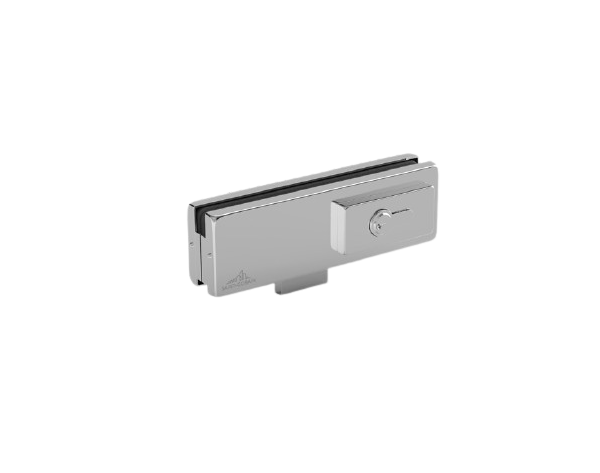

SGF 212 - Central Lock

Central locking component for glass-door applications.

SGF 213 - Strike Box for Central Lock

Designed to receive and work with the central locking mechanism.

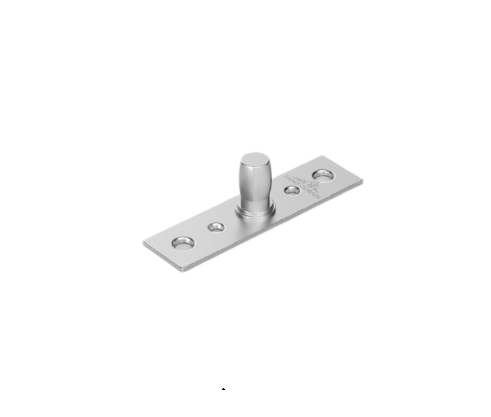

SGF 214 - Top Pivot

Provides the upper pivot connection for glass-door assemblies.

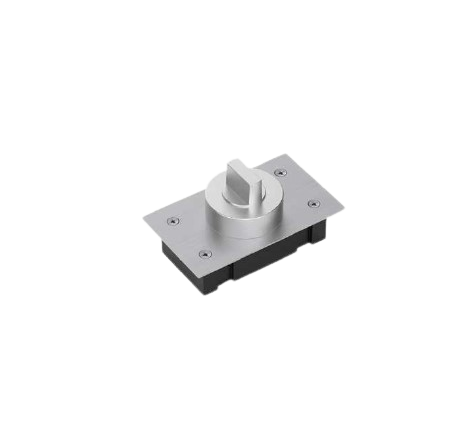

SGF 215 - Floor Pivot Bearing

Supports the floor-level pivoting arrangement of the glass door.

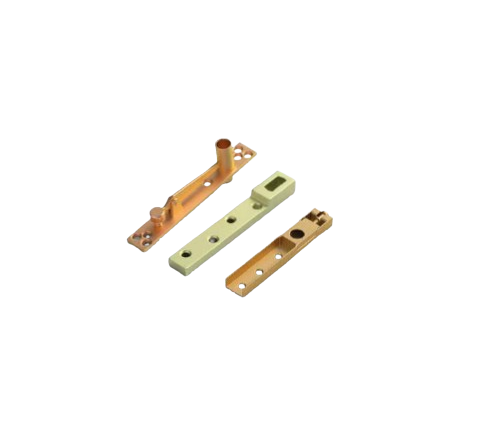

SGF 216 - Wooden Door Accessory

Accessory component for compatible wooden-door applications.

Pull Handles

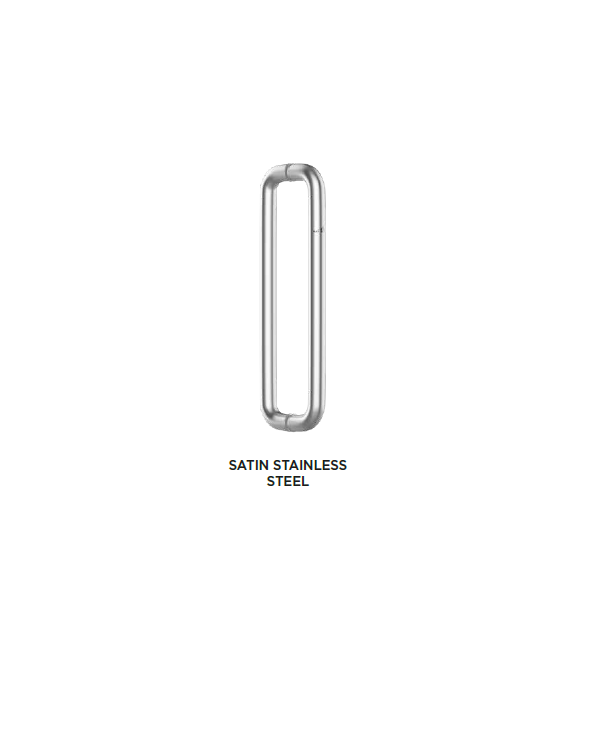

D Type Handle

A durable stainless-steel pull handle designed for glass doors, offering a clean and contemporary look with reliable everyday performance. It is available in different sizes to suit various door applications and is suitable for 10–12 mm glass thickness.

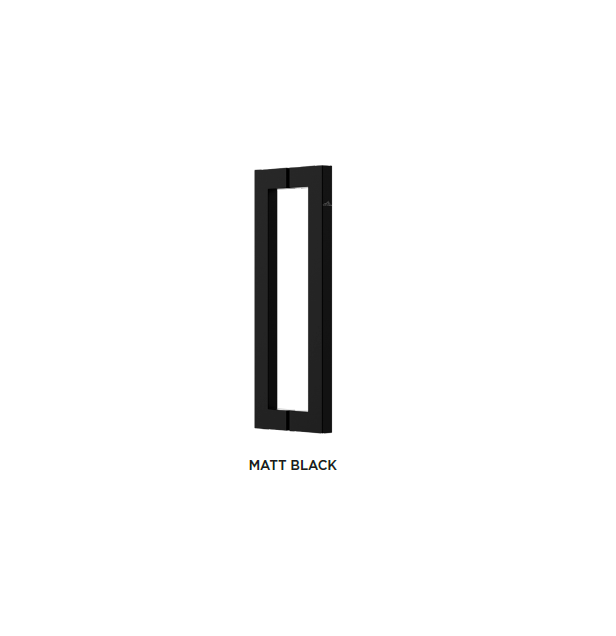

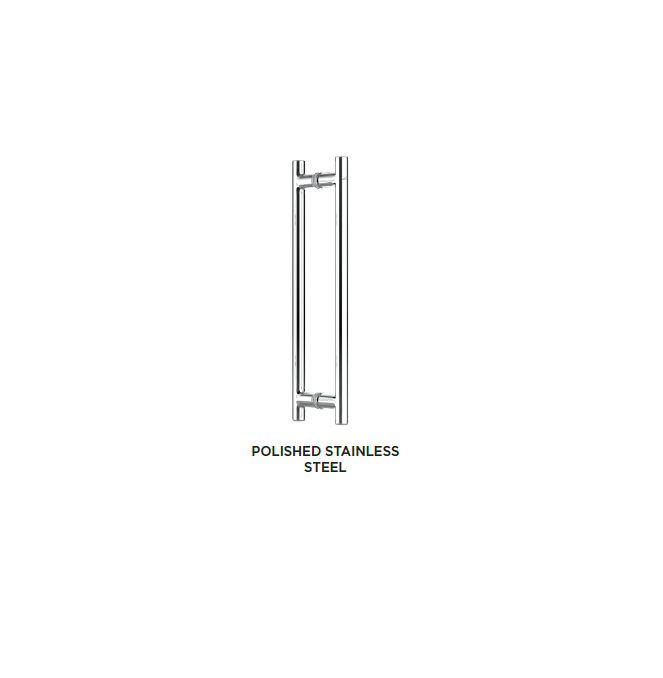

H Type Handle

A durable stainless-steel pull handle designed for glass doors, combining a sleek appearance with reliable performance. It is available in multiple lengths and is suitable for 10–12 mm glass thickness.

DR Type Handle

A premium stainless-steel pull handle designed for glass doors, offering a sleek appearance, durable performance and comfortable handling. It is suitable for 10–12 mm glass thickness and features concealed mounting for a clean, modern finish.

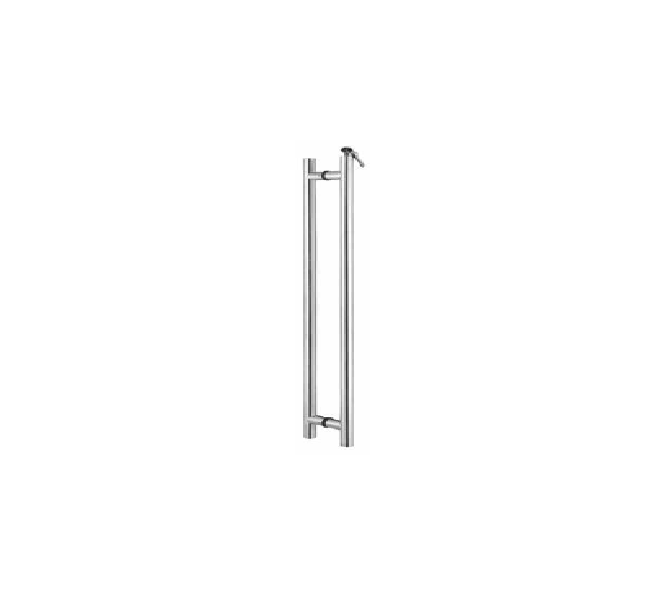

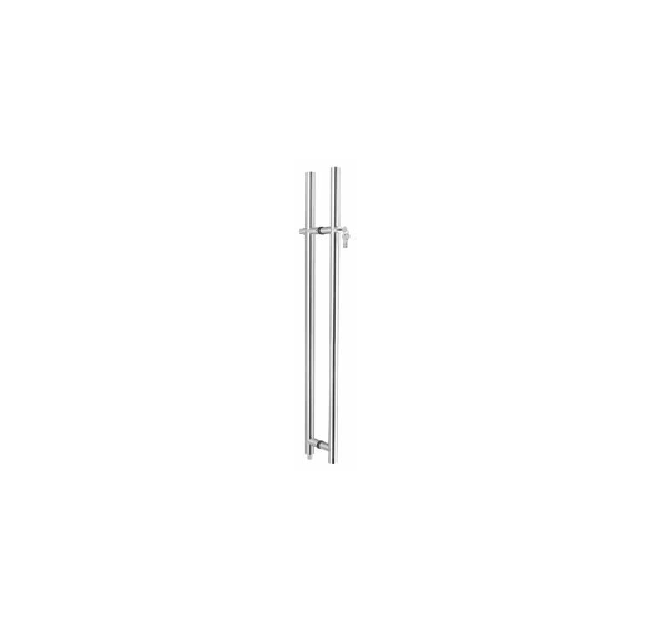

SGF 141 - Lockable Pull Handle

A lockable pull handle featuring a premium European design for glass doors. Made from SS304, it offers one-side key operation, a dust-proof socket and durable performance, with 5 keys included. It is available in a 1500 mm length with a 1350 mm centre-to-centre dimension.

SGF 146 - Lockable Pull Handle

A standard-design lockable pull handle made from SS304, featuring one-side key operation and a dust-proof socket. It comes with 5 keys and is designed for durable and convenient access control on glass doors.

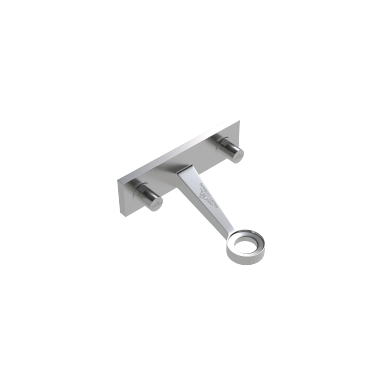

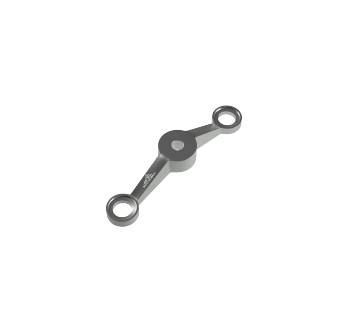

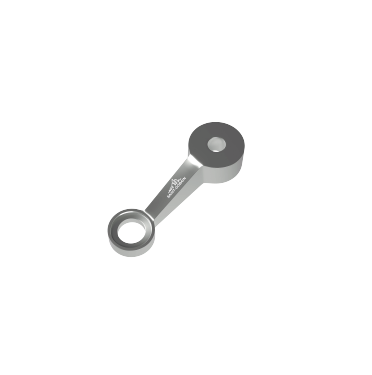

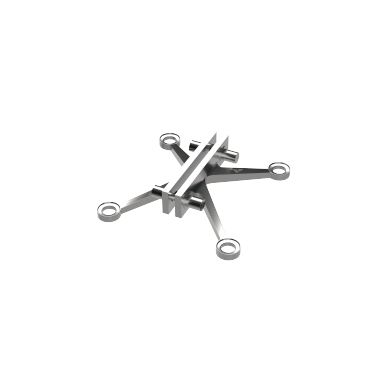

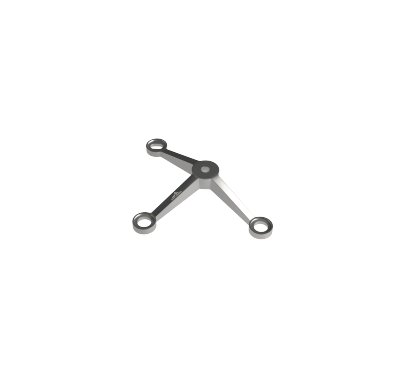

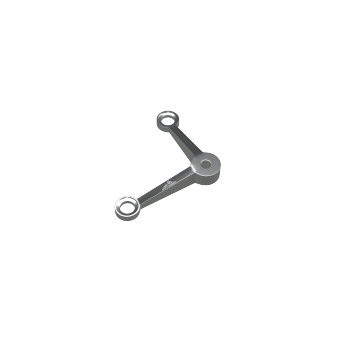

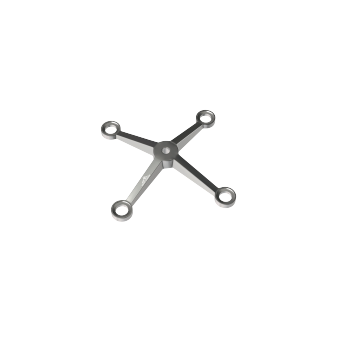

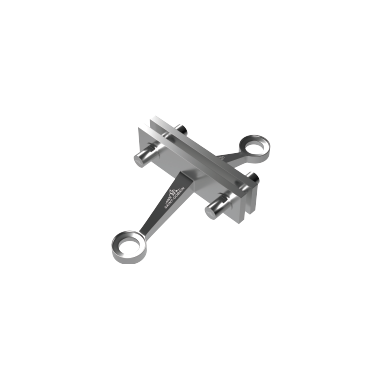

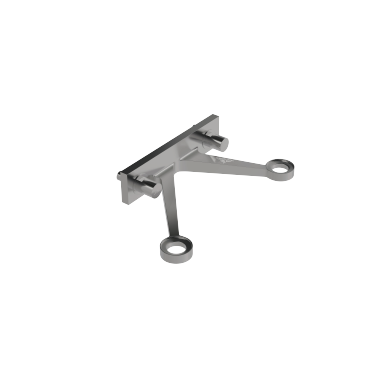

Spider Fittings Solutions

Precision Spider Fittings for Modern Glass Facades

Saint-Gobain spider fittings provide reliable point-fixing solutions for glass façades, combining strength, durability and a sleek architectural appearance. Available in fin-type and without-fin configurations, they are designed for versatile façade applications.
